Straight Carbide Insert Surfacing
Moulder Heads

These heads are great! It is just so handy to have a set of fresh carbide straight knives whenever you need them. They can be used from everything from "S4S"ing Teak to putting a backout on an MDF casing. They cut smooth with virtually no tear-out. They use standard ICK 2 sided inserts and it is very quick and inexpensive to replace the carbide inserts.

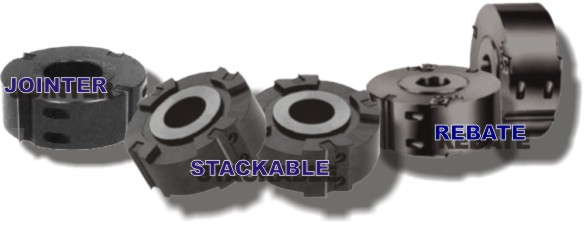

Rebate heads are great for cutting rabbits and dadoes.

Stackable heads can be assembled at interlocking angles to form longer continuous cuts.

Jointer heads are great multi-purpose surfacing heads.

Carbide Insert ( Rebate ) Rabbeting
with Side Spurs
Cut Length
Wings
Bore
Diameter
Price
Availabilty
2" ( 50mm )
2
1.25"
85mm
259.00
Stock
2" ( 50mm )
2
1.25"
100mm
259.00
Stock
2" ( 50mm )
2
1.25"
125mm
259.00
Stock
2" ( 50mm )
4
1.5"
125mm
295.00
Stock
2" ( 50mm )
4
40mm
125mm
295.00
Stock
2" ( 50mm )
4
1 13/16"
125mm
295.00
Stock
( Stackable ) Carbide Insert
Moulder Heads
Cut Length
Wings
Bore
Diameter
Price
Availabilty
1 3/16" ( 30mm )
4
40mm
125mm
335.00
Stock
2" ( 50mm )
4
40mm
125mm
399.00
Stock
2" ( 50mm )
4
1.5"
125mm
399.00
Stock
2" ( 50mm )
4
1 13/16"
125mm
399.00
Stock
Carbide Insert ( Jointer )
Cutter Heads
Cut Length
Wings
Bore
Diameter
Price
Availabilty
2" ( 50mm )
4
1.25"
125mm
436.00
3 weeks
2" ( 50mm )
4
40mm
125mm
460.00
3 weeks
2" ( 50mm )
4
1.5"
125mm
460.00
3 weeks
2" ( 50mm )
4
1 13/16"
125mm
460.00
3 weeks
-
-
-
-
-
-
3.15" ( 80mm )
4
1.25"
125mm
596.00
3 weeks
3.15" ( 80mm )
4
40mm
125mm
625.00
3 weeks
3.15" ( 80mm )
4
1.5"
125mm
625.00
3 weeks
3.15" ( 80mm )
4
1 13/16"
125mm
625.00
3 weeks
