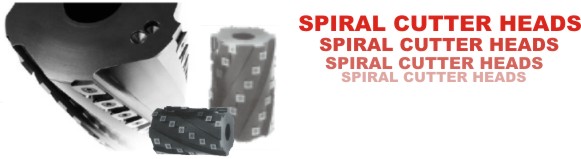

Spiral Carbide Insert Moulder Heads

Spiral Carbide Insert Cutter Heads can be just what the doctor ordered for wood with swirly grain or other difficult to machine lumber. These inserts can be turned four times for a long lasting economical cutting solution. Furthermore, they are much quieter than a regular head making a strong argument for adding these heads to your tooling arsenal.

Heads are made from high strength aircraft aluminum with a fine anodized finish. They come complete with a full set of carbide inserts, and a torx wrench for insert replacement. Heads use radius edge 15 x 15 x 2.5 inserts. Please see our carbide inserts page for replacements.

Spiral Cutter Head Bodies
Cutting Length
Rows Of Inserts
Bore
Diameter
Price
2" ( 50mm )
4
1.25"
100mm
424.00
4" ( 100mm )
4
1.25"
100mm
512.00
6" ( 50mm )
4
1.25"
100mm
599.00
-
-
-
-
-
2" ( 50mm )
6
40mm
125mm
476.00
4" ( 100mm )
6
40mm
125mm
619.00
6" ( 150mm )
6
40mm
125mm
779.00
9" ( 230mm )
6
40mm
125mm
1091.00
-
-
-
-
-
2" ( 50mm )
6
1.5"
125mm
476.00
4" ( 100mm )
6
1.5"
125mm
619.00
6" ( 150mm )
6
1.5"
125mm
779.00
9" ( 230mm )
6
1.5"
125mm
1091.00
-
-
-
-
-
2" ( 50mm )
6
1 13/16"
140mm
491.00
4" ( 100mm )
6
1 13/16"
140mm
653.00
6" ( 150mm )
6
1 13/16"
140mm
798.00
9" ( 230mm )
6
1 13/16"
140mm
1148.0
Please call for sizes and
applications not listed
