Moulder
and Shaper Corrugated
Cutter Heads |
|
|
|
|
|

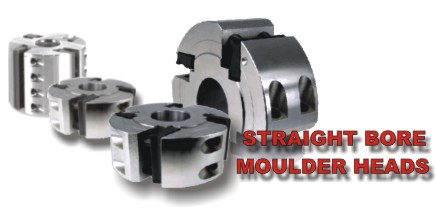

We
offer a full line of standard straight bore moulder and
shaper heads!
Cutter heads are precisely machined with CNC machinery from
High Strength Steel and designed to run at speeds up to
9,000 RPM. Heads are manufactured to exceed the toughest
European OEM standards and to produce a smooth finish with
years of reliable and hassle free performance. Most standard
heads can be shipped out from stock, less common and custom
heads can be manufactured in 2-3 weeks.
|
|
|
|
|
|
|
Hook
Angle Cutting
Characteristics |
|
|
|
Choosing
the correct hook is an important part of the head buying
process.
Many customer will purchase a 4 slot head with 2 slots at
one angle ( for hardwoods )and the other two at a different
angle ( for softwoods ). This is called a dual hook
head and can provide great flexibility. When purchasing
a head it is advisable to talk to our professional staff
to obtain to best choice for you application. Please call
for a quote on knife slot and hook configurations that are
different from the dual hook heads quoted on our site.
20
degree hook: This is a common angle to run soft woods
and hardwoods that are non-problematic to machine. A steeper
hook angle will keep an edge on the knife longer with less
horsepower needed for a deep cut. However this angle can
be more prone to create tear-outs in the finish.
12
degree hook: This is very common angle for running hardwoods
that tend to tear out. It is also the best choice for running
on side heads for most runs.
By
far the most common heads we sell are 12 & 20 dual hook
heads. Running 20 on the top pattern head and 12 on the
side heads to reduce tear out.
|
|
|
|
|
|
|
For
Moulders & Full Size Shapers
|
|
|
100
mm (3.94") diameter Heads with a 1 1/4 bore ( 12* & 20*
Dual Hook ) |
|
|
|
Cut
length
|
#
of knife slots
|
Price
|
1.96"
or 50mm
|
4
|
$249.00
|
-
|
-
|
-
|
2.36"
or 60mm
|
4
|
$285.00
|
-
|
-
|
-
|
3.15"
or 80mm
|
4
|
$354.00
|
-
|
-
|
-
|
3.94"
or 100mm
|
4
|
$452.00
|
-
|
-
|
-
|
5.91"
or 150mm |
4
|
$569.00
|
|
|
|
|
|
|
122
mm (4.8") diameter Heads with choice of 1 1/2" or 40mm
bore ( 12* & 20* Dual Hook ) |
|
|
|
Cut
length
|
#
of knife slots
|
Price
|
1.96"
or 50mm
|
4
|
$264.50
|
-
|
-
|
-
|
2.36"
or 60mm
|
4
|
$309.00
|
-
|
-
|
-
|
3.15"
or 80mm
|
4
|
$369.00
|
-
|
-
|
-
|
3.94"
or 100mm
|
4
|
$468.00
|
-
|
-
|
-
|
5.12"
or 130mm
|
4
|
$568.00
|
-
|
-
|
-
|
5.91"
or 150mm |
4
|
$625.00
|
-
|
-
|
-
|
7.09"
or 180mm |
4
|
$718.00
|
-
|
-
|
-
|
9.06"
or 230mm |
4
|
$828.00
|
|
|
|
|
|
|
137
mm (5.4") diam. Heads, choice of 1 13/16", 2 1/8"or
50mm bore
( 12* & 20* Dual Hook ) |
|
|
|
Cut
length
|
#
of knife slots
|
Price
|
1.97"
or 50mm
|
4
|
$279.00
|
-
|
-
|
-
|
2.36"
or 60mm
|
4
|
$319.00
|
-
|
-
|
-
|
3.94"
or 100mm
|
4
|
$479.000
|
-
|
-
|
-
|
5.12"
or 130mm
|
4
|
$588.00
|
-
|
-
|
-
|
5.91"
or 150mm
|
4
|
$637.00
|
-
|
-
|
-
|
7.09"
or 180mm
|
4
|
$738.00
|
-
|
-
|
-
|
9.06"
or 230mm |
4
|
$898.00
|
|
|
|
|
|
|
|
|
|
|
(3.0"
or 76mm) Diameter Heads, 3/4" bore, ( 15* Hook only ) |
|
|
|
Cut
length
|
#
of knife slots
|
Price
|
1.96"
or 50mm
|
2
|
$232.00
|
-
|
-
|
-
|
3.15"
or 80mm
|
2
|
$281.00
|
|
|
|
|
|
|
(3.5"or
89mm ) Diameter Heads, 1" bore, ( 15* Hook only ) |
|
|
|
Cut
length
|
#
of knife slots
|
Price
|
1.96"
or 50mm
|
2
|
$245.00
|
-
|
-
|
-
|
3.15"
or 80mm
|
2
|
$285.00
|
-
|
-
|
-
|
3.94"
or 100mm
|
2
|
$369.00
|
|
|
|
|
|
|
|
|
|
Robust,
Durable, And Smooth Running:
Corrugated Molder & Shaper Heads
|
|
